MASTER CUT
9m track: € 43.000
12m track: € 46.000
15m track: € 49.000
SAWMILL
Height 1,77 m
Lenght 2,75 m (front view from left to right)
Width 1,57 m

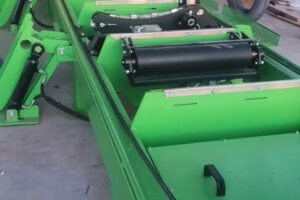

TRACKS
Hydraulic tracks
Lenght 9 m
Width 1,20 m
Height 0,57 m (from the ground up)
ROLLERS
Thickness of the crown 48 mm
Diameter 70 cm
BLADES
Thickness 1,3 mm
Width 60 cm
MAIN MOTOR
18 kw, 3000 rpm, 380 V
PERFORMANCES
Automattic forwards and backwards
Automatic up and down of the cutting gearhead
Computer assisted thickness of the cut
Maximum thickness of the cut is 40 cm
Lowest cut is 2 cm
Maximum LOG length 7,2 m
Maximum LOG diameter 980 mm
Maximum processing capacity in 10 hours shift approximately 35 cubic meters
